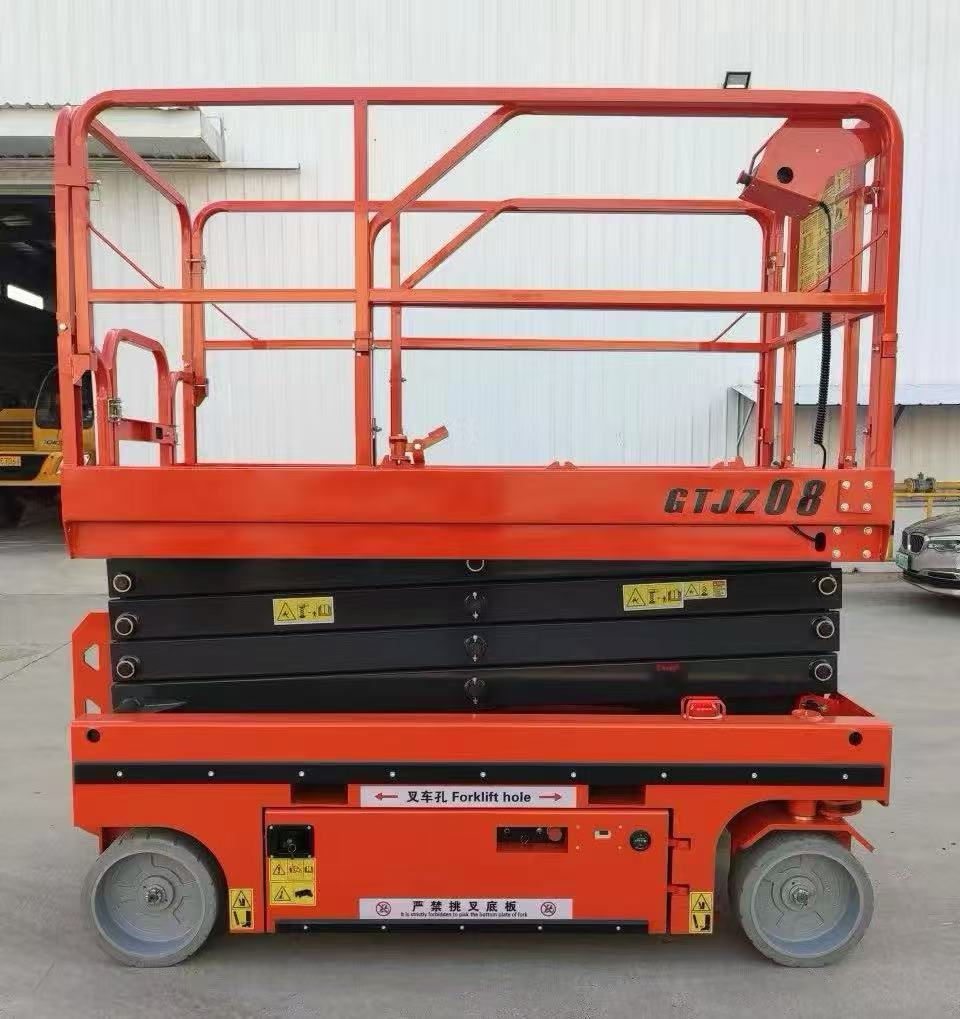

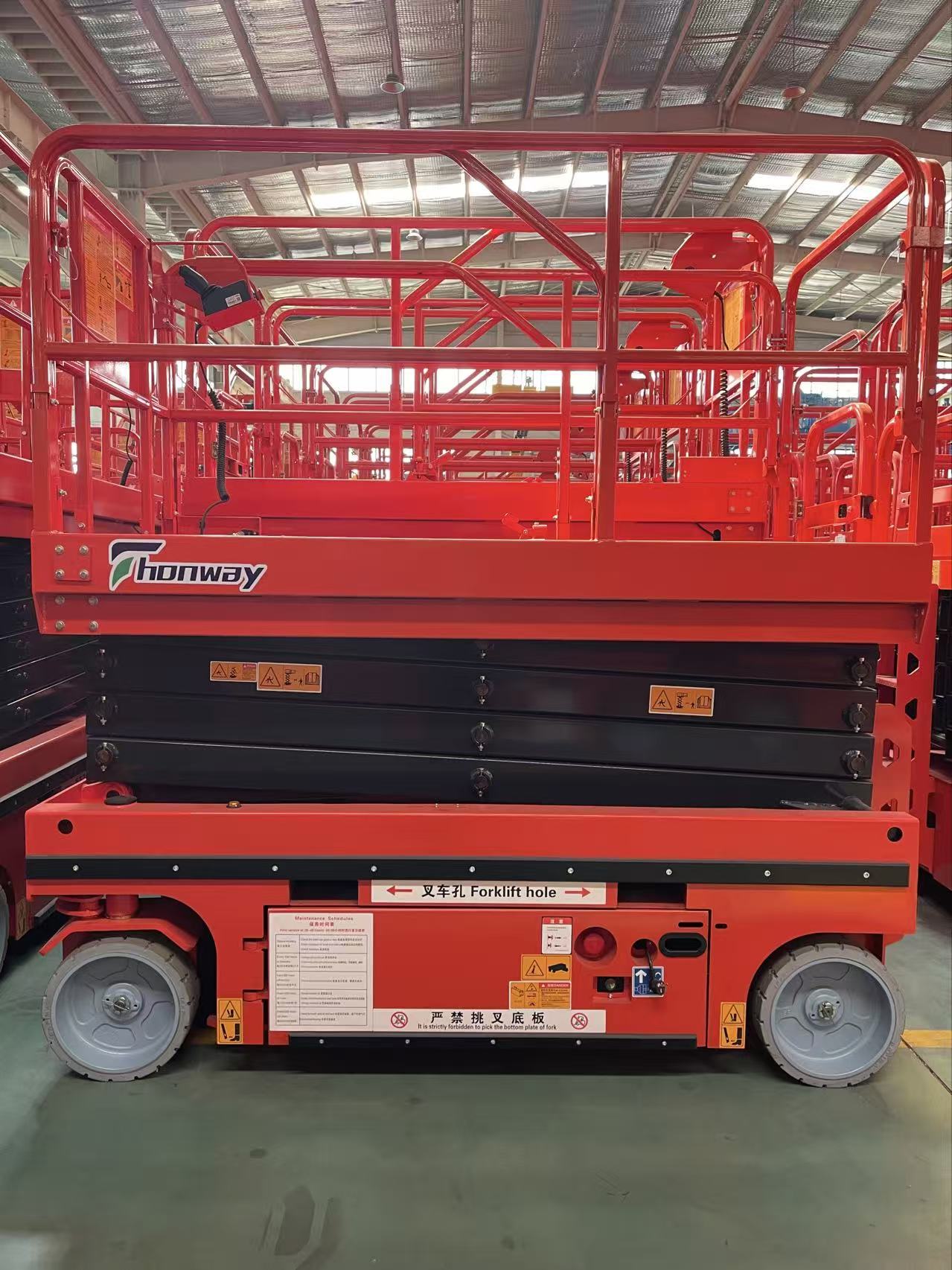

The self-propelled scissor lifting platform has an automatic walking function, and the whole machine is designed as a whole, which can operate flexibly in a small space. Built-in battery power supply, hydraulic drive and battery power combined, strong power, low noise, to meet different working states, no need for external power supply, no need for external traction can be lifted and lowered freely, the operator only needs to master the equipment control handle to complete the equipment forward, backward, steering, fast, slow walking and lifting and other actions. This equipment is flexible in movement, easy to operate, labor-saving, labor-saving to make high-altitude work more convenient and fast, is the ideal aerial work platform for efficient and safe production of modern enterprises, the tires are polyurethane non-marking tires, which are not easy to scratch the floor when used in high-end shopping malls. The battery is a lead-acid maintenance-free battery, with a large capacity to increase the use time of the equipment, strong power and strong endurance. The equipment is made of high-quality thickened steel to increase the support strength of the equipment, and comes with an overload protection system, tilt protection system, and pothole protection system, making the equipment safer and more reliable during use. The equipment is equipped with an upper and lower control system, and the upper control can operate the equipment to lift, walk, and steer. People can also operate the equipment to lift while standing on the ground. The equipment is also equipped with maintenance support to increase safety protection during maintenance. The paint surface adopts electrophoresis technology, and the coating of electrophoretic paint can make the inner cavity, weld, edge of the workpiece and other weak parts of the traditional coating method can also get good coating protection, so that the overall corrosion resistance of the product is significantly improved, and it is not easy to fade for a long time, which can greatly extend the service life of the product and improve the product grade.
Parameter | ||
Ltem | unit | HWGTJZ08 |
Size | ||
Work platform size(length×wide×high) | mm | 2270×1120×1130 |
Overall dimensions of the machine(A×B×C) | mm | 2430×1220×2420 |
Overall dimensions (length×wide×high,guardrail folded) | mm | 2430×1220×1850 |
Table extension size G | mm | 900 |
Performance | ||
Maximum working height | m | 10.00 |
Maximum platform height H | m | 8.00 |
Safe working load | kg | 450 |
Extended Platform safe working load | kg | 113 |
Minimum ground clearance | mm | 100/20 |
Wheelbase | m | 1.89 |
Turning radius(inner wheel/outer wheel) | m | 0.15/2.3 |
Lifting/driving motor |
| 24V/3.3kw |
Lifting speed | m/min | 6-9 |
Machine travel speed(retracted state) | Km/h | 3.8 |
Machine travel speed(lifting status) | Km/h | 0.8 |
Battery |
| Lead acid maintenance free |
Charger | V/A | 24/30 |
Max Climb Capability | % | 25 |
Maximum allowable working angle | 。 | 1.5/3 |
tyre |
| Non marking solid tire381×127mm |
Overall weight | kg | 2300 |
Proportional | Automatic brake system | Charging protection system |
Full range walking | Emergency descent system | Folding fence |
Seamless tire | Platform self-locking door | Emergency stop button |
Standard transport forklift | Unidirectional extension platform | horn |
Fault diagnosis | Automatic pit protection system | Safety maintenance support rod |
Action buzzing | Tilt protection system | Strobe light |
Oil pipe explosion-proof system
|
|
